Framework Flexibility in ZIF-8
Summary:
The authors from the University of Edinburgh (United Kingdom) and the University of St. Andrews (United Kingdom) studied the structural flexibility of ZIF-8, a zeolitic imidazole-based metal-organic framework, achieving insights into its gas adsorption mechanism for gas separation applications.
Background:
1. To address the discrepancy between ZIF-8’s theoretical molecular sieving performance and experimental large-molecule adsorption, previous researchers attributed ZIF-8’s two-step N₂ adsorption isotherm to adsorbed molecule reorganization, but failed to explain structural flexibility.
2. The authors proposed combining experiments (gas adsorption, XRD) and GCMC simulations, confirming ZIF-8’s structural change via gas adsorption, consistent with high-pressure-induced changes.
Research Content:
1.Synthesis: The authors synthesized ZIF-8 following the method described by Huang et al.
2.Characterizations:
1) BET: ZIF-8 (Exp I) had 1319 m²/g BET surface area; ZIF-8 (Exp II) 1756 m²/g; ZIF-8AP (Sim) 1279 m²/g; ZIF-8HP (Sim) 1706 m²/g. Free pore volume: ZIF-8AP 2918 ų/uc, ZIF-8HP 3034 ų/uc.
2) XRD: In-situ XRD at 77 K showed N₂-loaded ZIF-8 had the same imidazolate linker reorientation as ZIF-8HP.
3) No SEM/TEM or electrochemical/optical tests were conducted.

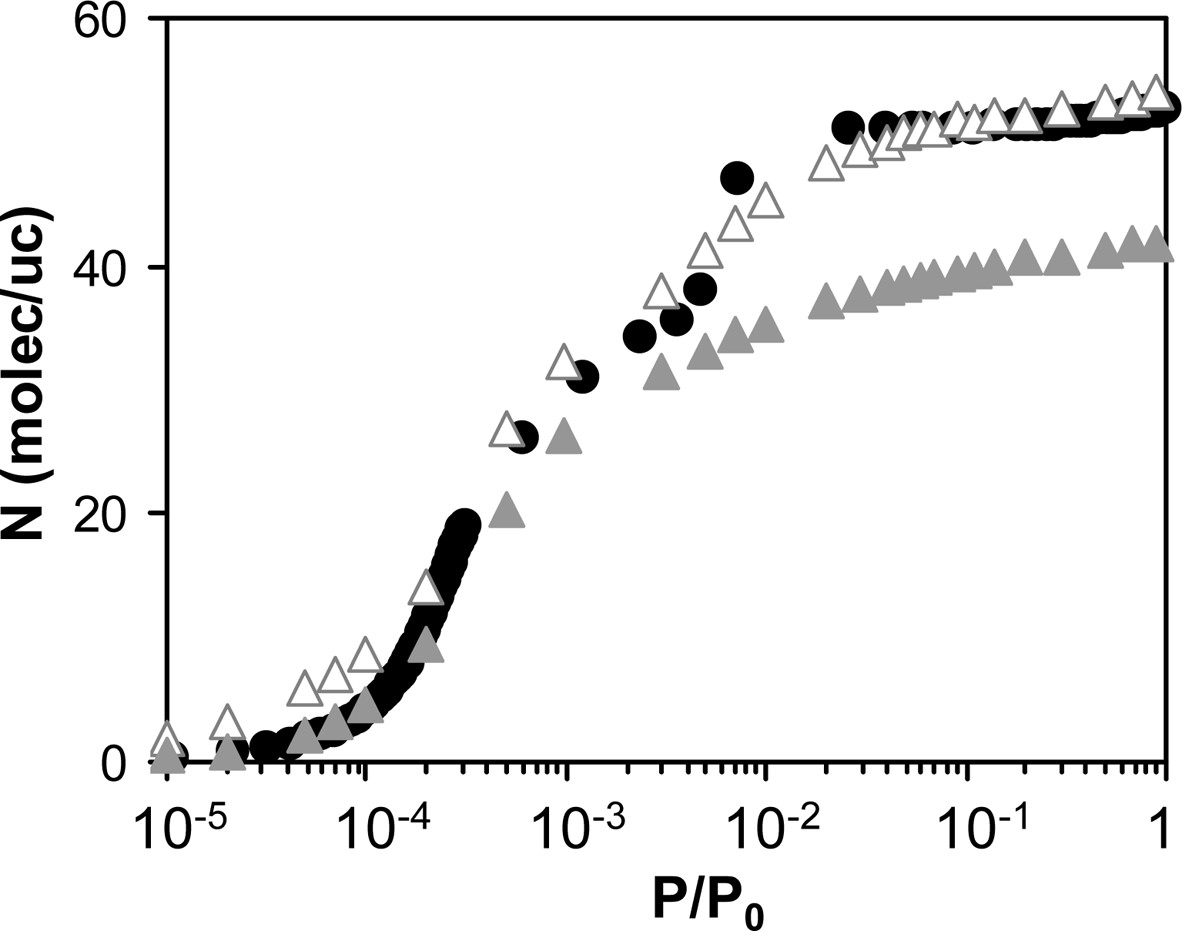

3.Application: Tested in N₂ adsorption at 77 K; two-step isotherm (0.002, 0.02 P/P₀) with reversible desorption, improving gas separation potential.

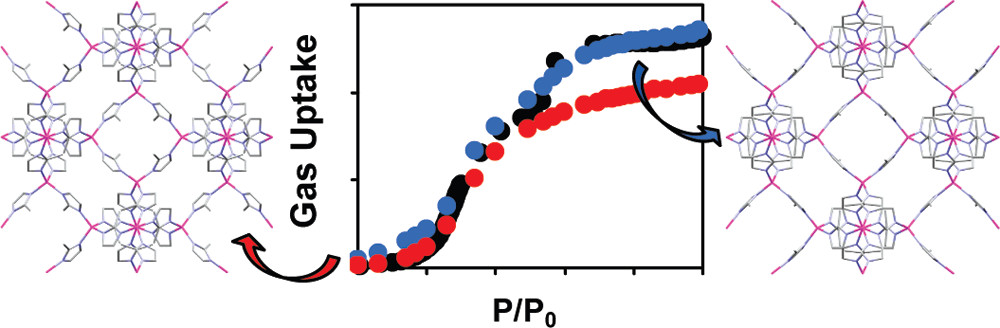

4.Mechanism: Gas adsorption causes imidazolate linker swing, expanding 6-ring windows, enabling large-molecule adsorption; ZIF-8AP/ZIF-8HP conformations explain full-pressure-range adsorption.
Outlook:
This research clarifies ZIF-8’s structural flexibility mechanism, providing a basis for designing advanced molecular sieving membrane materials and guiding the development of porous solid materials for gas separation.
Opening the Gate: Framework Flexibility in ZIF-8 Explored by Experiments and Simulations
Authors: D. Fairen-Jimenez, S. A. Moggach, M. T. Wharmby, P. A. Wright, S. Parsons, T. Düren
DOI: 10.1021/ja202154j
Link: https://pubs.acs.org/doi/10.1021/ja202154j
