Product: CPL-2
Synonyms: NA
CAS：726124-20-5
Basic Information
| Unit MF. | C22H12N6O8Cu2 | Unit MW. | 615.45808 | ||
| Coordination Metal | Cu | Linkers |
2,3-Pyrazinedicarboxylic Acid（CAS：89-01-0）; 4,4'-Bipyridine（CAS：553-26-4） |
||
| Pore Size | 0.6nm*0.8nm | Pore volume | |||
| Surface Area | BET 490 m2/g by CO2 sorption | ||||

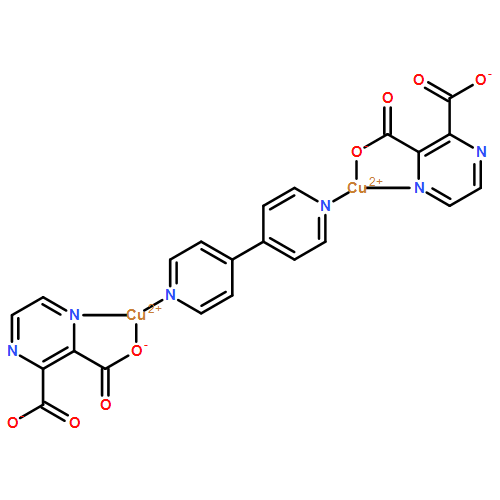

| Analog Structure |   |
||||
Product Property

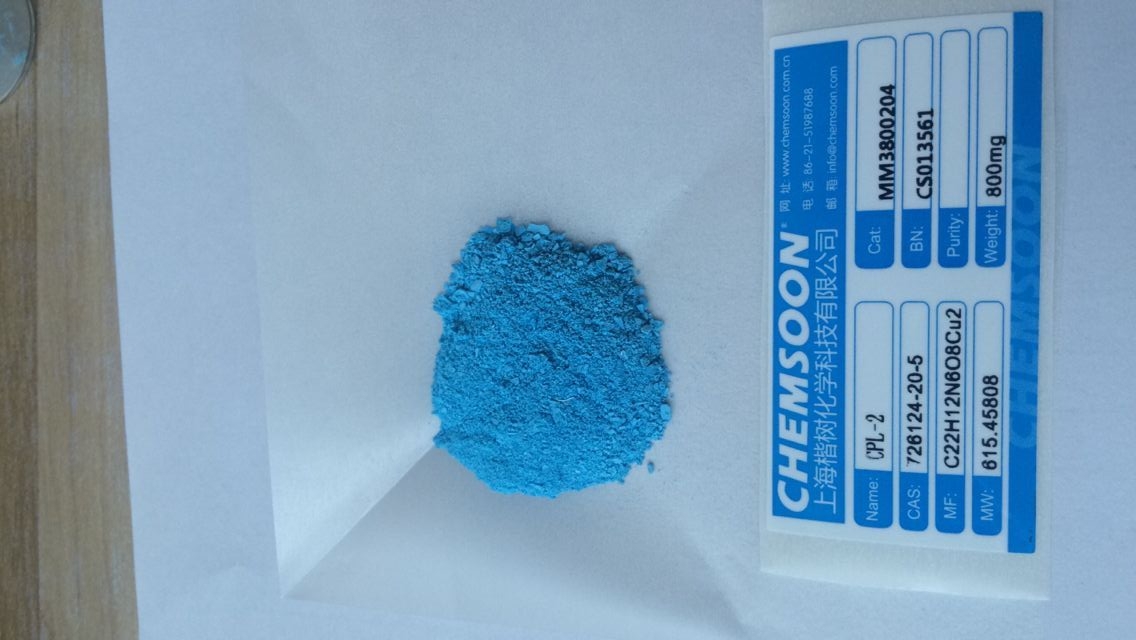

| Appearance | Blue Powder |  |
||
| Particle Size | 500nm | |||
Stability
1) CPL-2 is stable in air and aqueous conditions for weeks
2) Thermal decomposition temperature around 200 ° C
2) Thermal decomposition temperature around 200 ° C
Preservation
1) Keep sealed in dry and cool condition
2) It is recommended to activate for 3 hours at 120 degree in vacuum
Other Features
Fluorescence:NA
Applications
1) Gas (e.g. carbon dioxide, C2H2/C2H4) sorption and separation
2) vertical pore tunnel for transportion of ions
2) vertical pore tunnel for transportion of ions

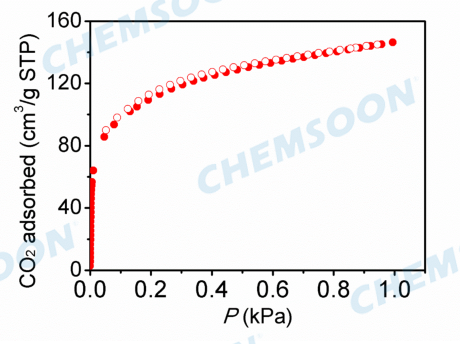

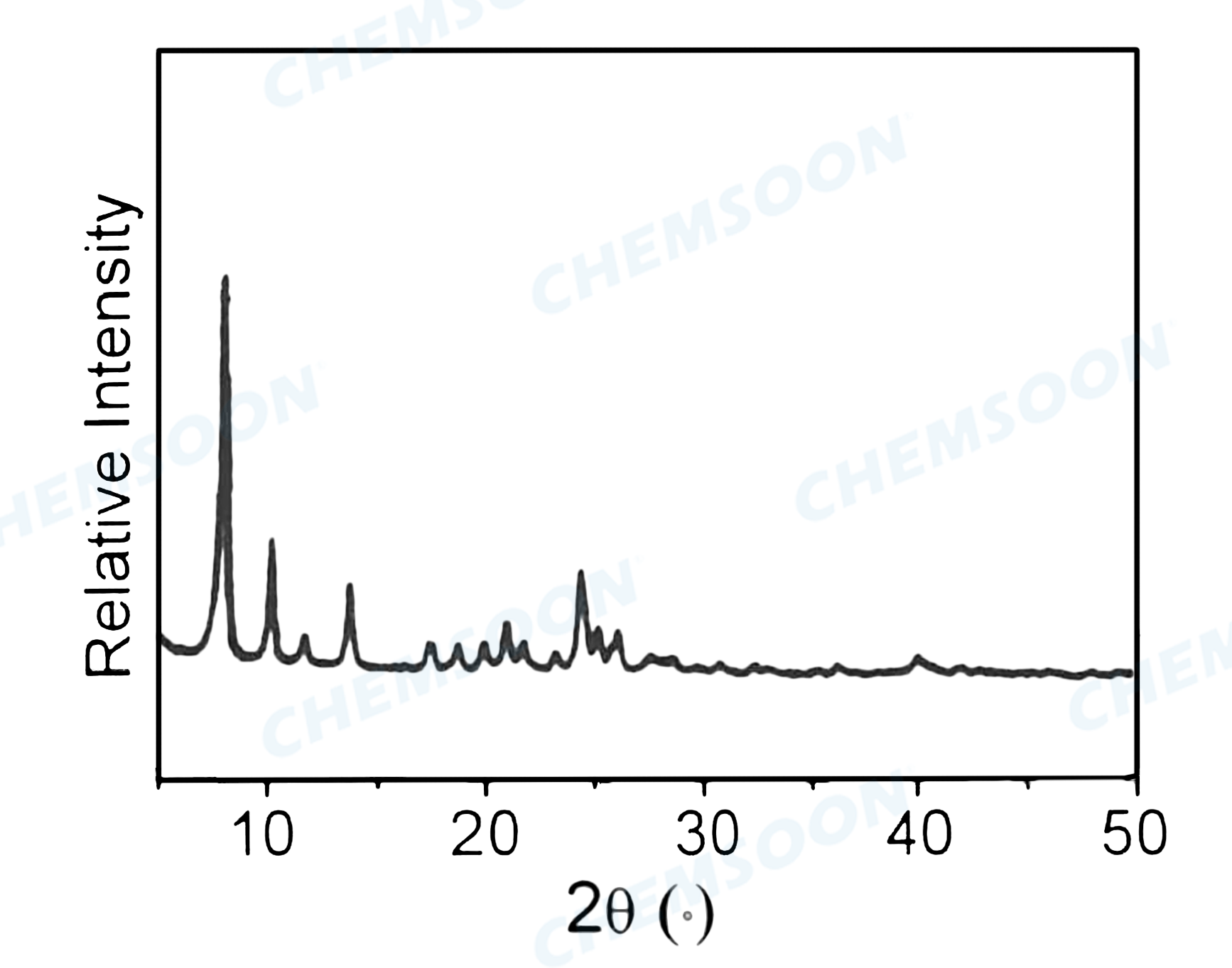

Characterizations
References
1) R. Kitaura, S. Kitagawa, Y. Kubota, T. Kobayashi, K Kindo, Y. Mita, A. Matsuo, M. Kobayashi4, Ho-Chol Chang, T. C. Ozawa, M. Suzuki, M. Sakata, M. Takata, Science 2002, 298(5602), 2358-2361 ; DOI: 10.1126/science.1078481 ; Formation of a One-Dimensional Array of Oxygen in a Microporous Metal-Organic Solid
2) H. Sakamoto, R. Matsudab, S. Kitagawa, Dalton Trans., 2012, 41, 3956-396, DOI: 10.1039/C2DT12012G ; Systematic mechanochemical preparation of a series of coordination pillared layer frameworks
