[Fe-TP] MOFite: A High-Performance Anode for Next-Generation Lithium-Ion Batteries
Abstract:
1. The article addresses the development of a superior anode material for lithium-ion batteries, focusing on economic scalability and environmental safety.
2. It highlights the use of metal-organic frameworks (MOFs), specifically Fe-Tp, which surpasses the limitations of commercial graphite in performance efficiency.

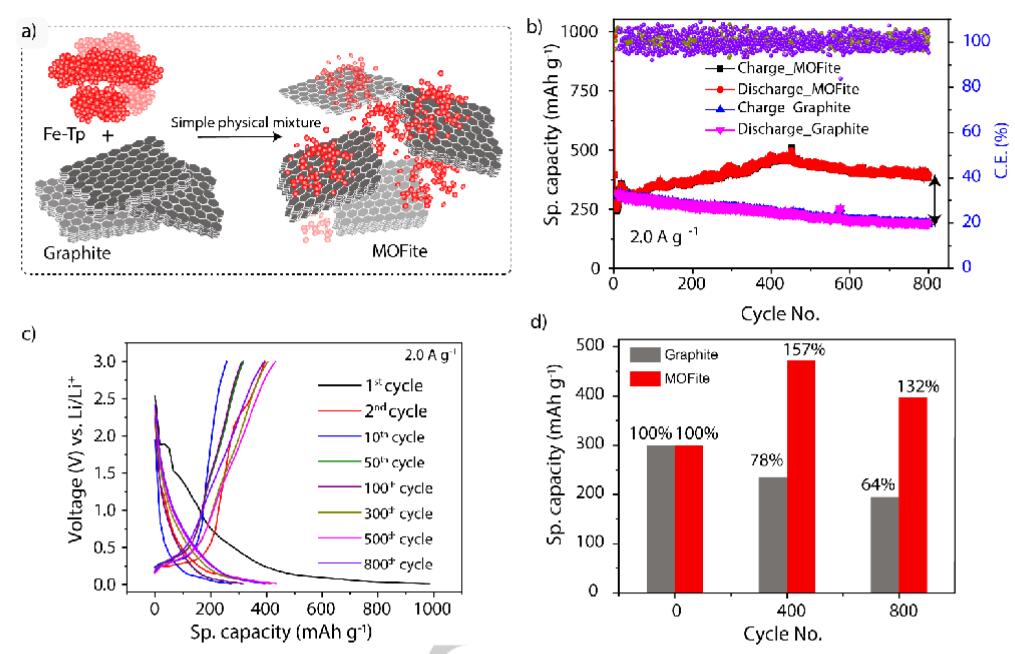

3. The incorporation of 10% Fe-Tp into commercial graphite (MOFite) notably enhances lithium storage, doubling the capacitance after 400 cycles, showcasing its potential as a performance booster.
Research Background
1. Industry Problems: The reliance on graphite with its low theoretical capacitance limits the potential of lithium-ion batteries. Alternative materials like Li, Si, and metal oxides/sulfides/phosphides/nitrides have issues such as dendrite growth, volume expansion, and poor cyclic stability.
2. Previous Research and Innovations: Open-framework porous materials like MOFs have been introduced for their superior charge storage capabilities. The introduction of conjugation in MOFs (c-MOFs) enhances local electron transfer. The authors propose the use of Fe-Tp, a 3D-conjugated MOF, for its high-density lithiophilic sites and hierarchical porosity.
3. Authors' Improvements: The paper introduces a large-scale synthesis of Fe-Tp using a ball-milling method, which is cost-effective and scalable. Fe-Tp's unique structural features, including ultra-microporous nature and high-density packed structure, are emphasized for their contribution to improved electrode performance.
Experimental Details

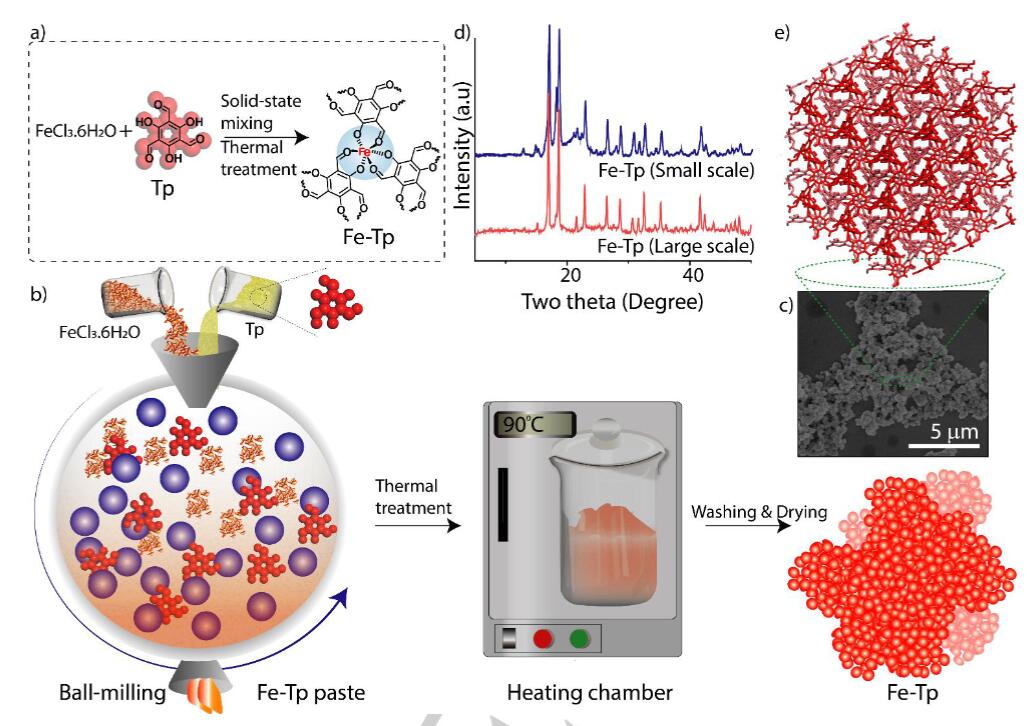

1. Synthesis of Fe-Tp: The authors used a ball-milling method to synthesize Fe-Tp, achieving approximately 25 grams in a single reaction without solvents or catalysts.
2. Characterization: SEM images, PXRD, FT-IR, XPS, and N2 adsorption measurements were conducted to characterize the material's morphology, crystalline structure, surface area, and porosity.

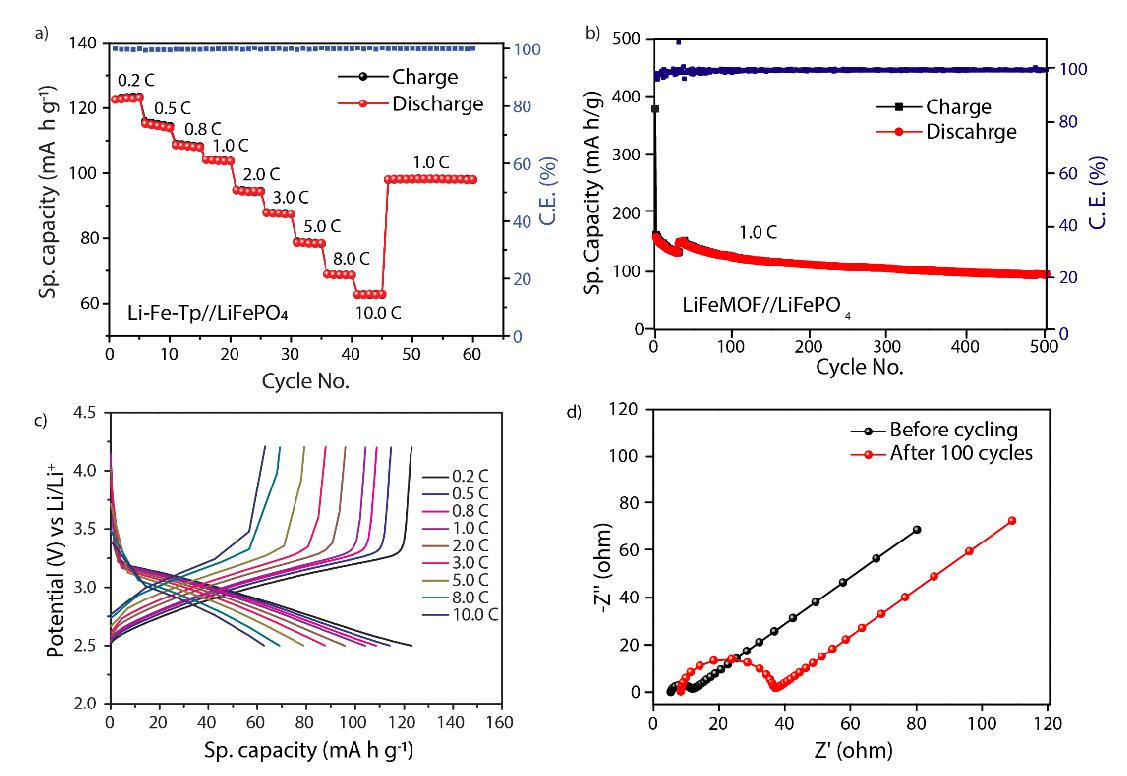

3. Electrochemical Testing: Coin cells were fabricated for testing Fe-Tp's electrochemical performance, including galvanostatic charge-discharge, cyclic stability, rate performance, and cyclic voltammetry.
Test and Analysis
1. XPS Profile: Indicates the presence of iron with specific peaks corresponding to different oxidation states.
2. N2 Adsorption Measurement: Revealed a mesoporous nature of Fe-Tp with a BET surface area of 181 m² g⁻¹.
3. Pore Size Distribution: Validated the hierarchical porous nature of Fe-Tp, crucial for Li+ ion diffusion.
4. Electrochemical Performance: Fe-Tp demonstrated an ultrahigh specific capacity of 1447 mA h g⁻¹ at 0.1 A g⁻¹ and maintained 89% cyclic stability after 500 cycles at 1.0 A g⁻¹.
Summary:
1. Fe-Tp as an anode material for LIBs has shown exceptional performance metrics, including high specific capacity and cyclic stability.
2. The paper could explore the long-term effects of the solid electrolyte interphase (SEI) on performance.
3. It would be valuable to investigate the integration of Fe-Tp with other electrode materials for further performance enhancement.
MOFite: A High-Density Lithiophilic and Scalable Metal-Organic Framework Anode for Rechargeable Lithium-Ion Battery
Authors：Safa Gaber, Abdul Khayum Mohammed, Bharathkumar H. Javaregowda, José Ignacio Martínez, Pilar Pena Sánchez, Felipe Gándara, Kothandam Krishnamoorthy, Dinesh Shetty
DOI：10.1002/ange.202409256
Links：https://onlinelibrary.wiley.com/doi/10.1002/ange.202409256
