[Atmospheric CO2 Capture]Synergic morphology engineering and pore functionality within a metal–organic framework for trace CO2 capture
Abstract:
1) The article introduces a pyrazine-functionalized Co-MOF (1a′) designed for trace CO2 capture in ultralow-pressure environments, crucial for confined spaces and natural gas systems.
2) The material demonstrates record-high adsorption performance at 400 ppm and 10,000 ppm CO2 concentrations, with negligible adsorption for CH4 and N2, indicating a breakthrough in selectivity.
3) The 1a′ material shows superior CO2/CH4 and CO2/N2 separation properties with high IAST selectivity and improved hydrophobic nature, a significant advancement over previous works.
Research Background
1) Industry Problems:The emission of CO2 as a greenhouse gas has reached concerning levels, impacting climate and human life. Capturing CO2 from flue gas and natural gas, which contains low concentrations of CO2, presents a significant challenge due to similar molecular sizes and low content levels.
2) Previous Solutions: Various MOFs have been explored for CO2 capture, but they often lack in experimental selectivity and face issues with desorption and regeneration.

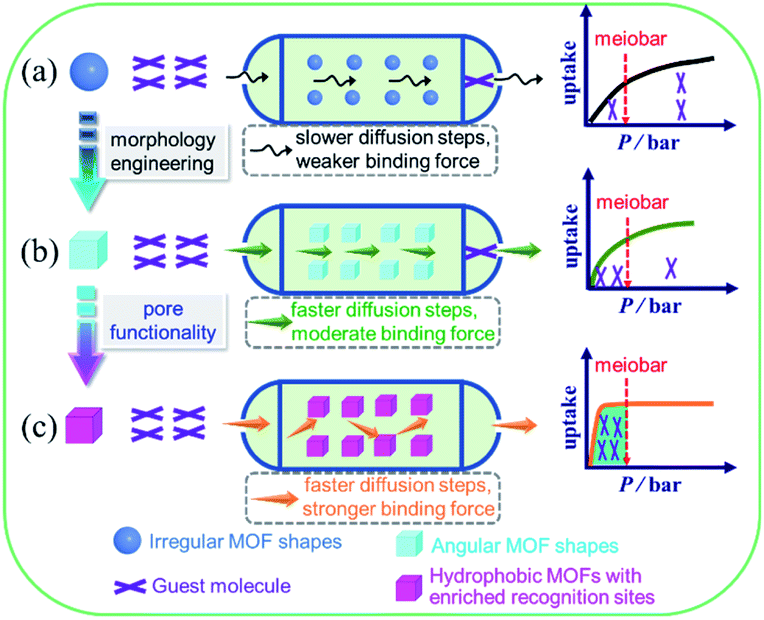

3) Innovations by Authors: The authors propose a microwave-guided method for synthesizing Co-MOF nanocrystals with hexahedral morphology. The introduction of pyrazine functionality into the MOF enhances CO2 capture capability and selectivity, addressing the limitations of previous materials.
Experimental Details
1) Material Synthesis:
Commercially available reagents and solvents, such as cobalt(II) nitrate hexahydrate and 2,5-dihydroxyterephthalic acid, were used to synthesize 1, 1a, and 1a′ via microwave-assisted and traditional solvothermal methods. The crystal morphology and size were optimized by adjusting the pH value and reaction time, ultimately yielding uniform bifrustum hexagonal prisms of MOF.
2) The samples were characterized by surface morphology, powder X-ray diffraction (PXRD), temperature-programmed desorption (TPD), and nitrogen adsorption-desorption measurements.
3) Pyrazine Functionalization: 1a was functionalized with pyrazine vapor via heating to avoid the coordination issues of solvent impurities in traditional methods, resulting in a structurally stable 1a′.
4) Adsorption Performance Tests: 1a′ exhibited adsorption capacities of 1.36 mmol g⁻¹ and 5.7 mmol g⁻¹ under 400 ppm and 10,000 ppm CO2 conditions, respectively. The CO2/N2 selectivity of 1a′ reached 1454, and the CO2/CH4 selectivity reached 494, significantly outperforming the reference materials.
Analysis and Testing:
1) Morphology and Structure Analysis: SEM revealed the morphological changes of MOF under different pH conditions. PXRD confirmed that all materials had consistent crystal phases. Rietveld refinement analysis revealed that 1a′ had expanded lattice parameters compared to 1a.
2) Coordination structure Analysis: XPS analysis indicated that the coordination of pyrazine with Co2+ sites led to electron density migration. 1H NMR and ICP-OES analyses confirmed the functionalization ratio of pyrazine in 1a′.

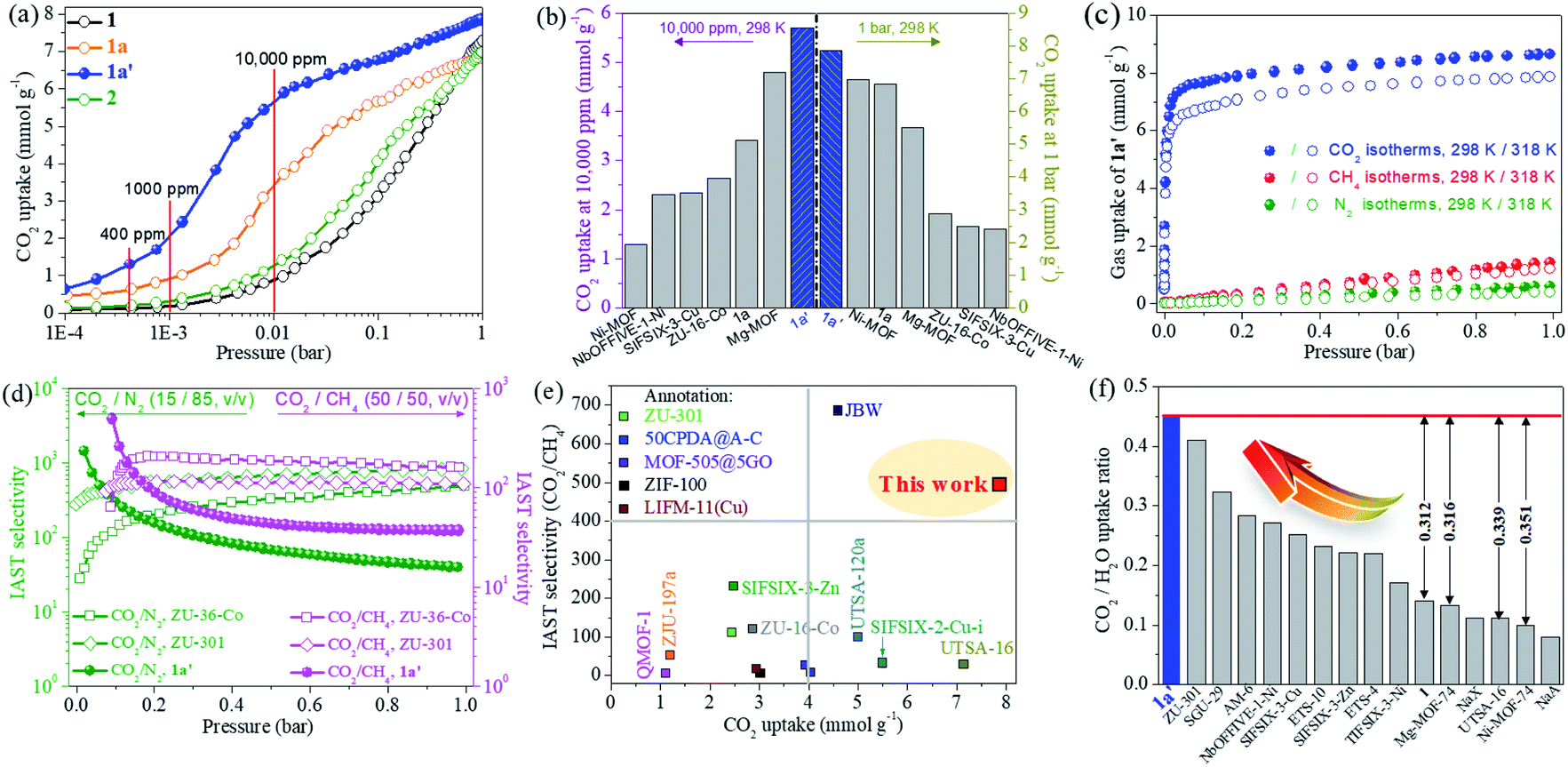

Pore Analysis: CO2 adsorption isotherms showed that 1a′ had a BET specific surface area of 1220 m² g⁻¹, higher than other reference materials. The pore size distribution obtained by the Horvath–Kawazoe method showed that the pore size of 1a′ was concentrated within 6.1 Å.
3) Single-Component Adsorption Isotherms and Selectivity Analysis: 1a′ exhibited the highest CO2 adsorption capacity of 5.70 mmol g⁻¹ at 298 K, surpassing other reference materials. Further calculations revealed that the adsorption selectivities of 1a′ for CO2/CH4 and CO2/N2 were 494 and 1454, respectively.
4) IAST Selectivity Calculation: The isotherms were fitted using the dual-site Langmuir-Freundlich model, and the selectivities of 1a′ for equimolar CO2/CH4 and CO2/N2 mixtures were calculated to be 494 and 1454, respectively, significantly outperforming other advanced materials.
5) Water Molecule Competitive Adsorption: At 298 K, the H2O adsorption curves of 1a and 1a′ indicated that the CO2/H2O adsorption ratio of 1a′ was 0.45, showing a significant improvement compared to other benchmark materials.
Diffusion Coefficient Evaluation: The CO2 diffusion coefficient of 1a′ was 19.1 × 10⁻¹⁵ m² s⁻¹, higher than that of 1a at 3.68 × 10⁻¹⁵ m² s⁻¹. Combined with simulation data, it was found that the diffusion selectivity (DM,CO2/DM,H2O) of 1a′ was significantly higher than that of 1a.
6) Mechanism: Through GCMC simulations and DFT calculations, the interactions between CO2 and the MOF framework were investigated, revealing the contribution of multiple interaction sites to CO2 adsorption.
Summary:
1) The pyrazine-functionalized MOF 1a′ exhibits exceptional performance in trace CO2 capture with high selectivity and hydrophobicity, making it a promising material for gas separation applications.
2) The paper could benefit from a deeper analysis of the long-term stability of the material under continuous operation conditions.
