Product: UTSA-16
Synonyms: [K(H₂O)₂Co₃(cit)(Hcit)]; ([KCo₃(C₆H₄O₇)(C₆H₅O₇)(H₂O)₂]·8H₂O)
CAS：
Basic Information
| Unit MF. | [KCo₃(C₆H₄O₇)(C₆H₅O₇)(H₂O)₂]·8H₂O | Unit MW. | ~ 1025.53 | ||
| Coordination Metal | Co, K | Linkers |
Citric acid (H₄cit, i.e., C₆H₈O₇) |
||
| Pore Size | 3.3-5.4 Å | Pore volume | 0.31 cm³/g | ||
| Surface Area | ~ 600 m²/g (900m2/g Langmuire BET in reference) | ||||

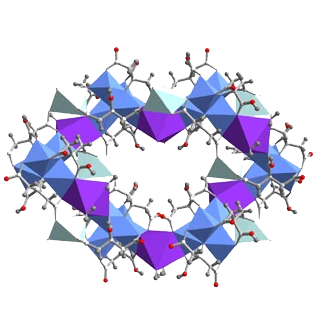

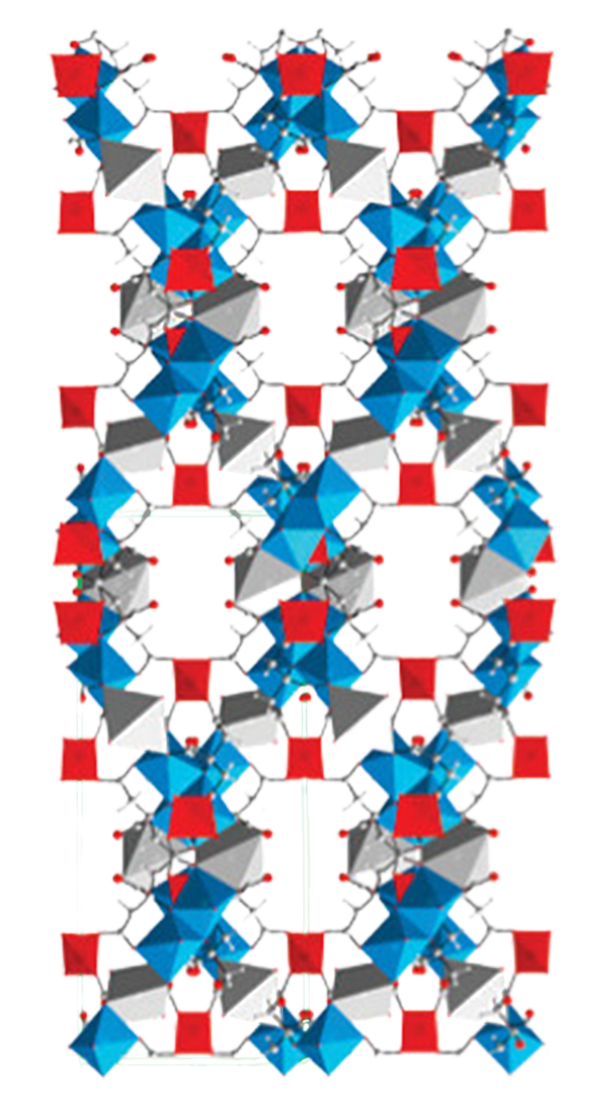

| Analog Structure |    |
||||
Product Property
| Appearance | Violet prismatic crystals / Powders | |||
| Particle Size | NA | |||
Stability
1) Stability in solution is not mentioned;
2) Thermal stability: The material will turn to non - porous structures when vacuated at high temperature,
Preservation
1) No special preservation conditions mentioned, it can be stored in a dry and sealed condition referring to similar materials.
2) The as - synthesized sample is degassed at 363K for 24 hours to obtain the activated sample. Be cautious do not heat at higher temperature.
Other Features
NA
Applications
1) Carbon dioxide capture: It has a high adsorption capacity for carbon dioxide under ambient conditions and can be used for post - combustion carbon dioxide capture.
2) Biogas purification: It can separate carbon dioxide from biogas, as confirmed by simulated breakthrough experiments on carbon dioxide/methane mixtures.
3) Magnetic materials: With a magnetic hysteresis loop and canted antiferromagnetism, it can be used for magnetic material research.
4) Gas adsorption: It has a microporous structure and can be used for gas adsorption research (The gas adsorption application is not deeply explored in the article, which mainly focuses on magnetism).
Characterizations
References
1) Xiang, Shengchang; He, Yabing; Zhang, Zhangjing; Wu, Hui; Zhou, Wei; Krishna, Rajamani; Chen, Banglin; Nature Communications, 2012, 3(954), DOI: 10.1038/ncomms1956, Microporous metal - organic framework with potential for carbon dioxide capture at ambient conditions
2) Xiang, Shengchang; Wu, Xintao; Zhang, Jianjun; Fu, Ruibiao; Hu, Shengmin; Zhang, Xudong; Journal of the American Chemical Society, 2005, 127(47), 16352 - 16353, DOI: 10.1021/ja0546065, A 3D Canted Antiferromagnetic Porous Metal - Organic Framework with Anatase Topology through Assembly of an Analogue of Polyoxometalate
