Product: CPL-5
Synonyms: NA
CAS：701198-24-5
Basic Information

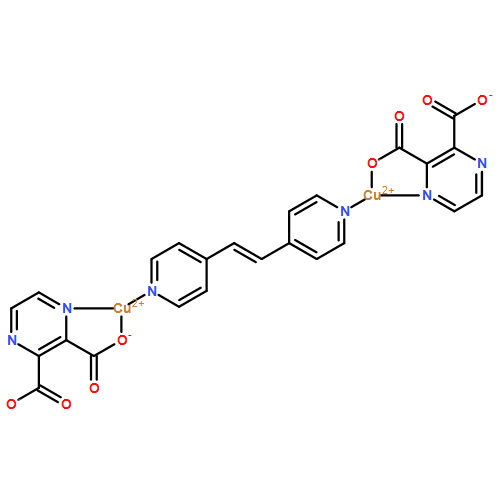

| Unit MF. | C24H14N6O8Cu2 | Unit MW. | 641.49536 | ||
| Coordination Metal | Cu | Linkers |
1,2-Di(pyridin-4-yl)ethene（CAS：13362-78-2）; Pyrazine-2,3-dicarboxylic acid（CAS：89-01-0） |
||
| Pore Size | 0.6nm*0.8nm | Pore volume | |||

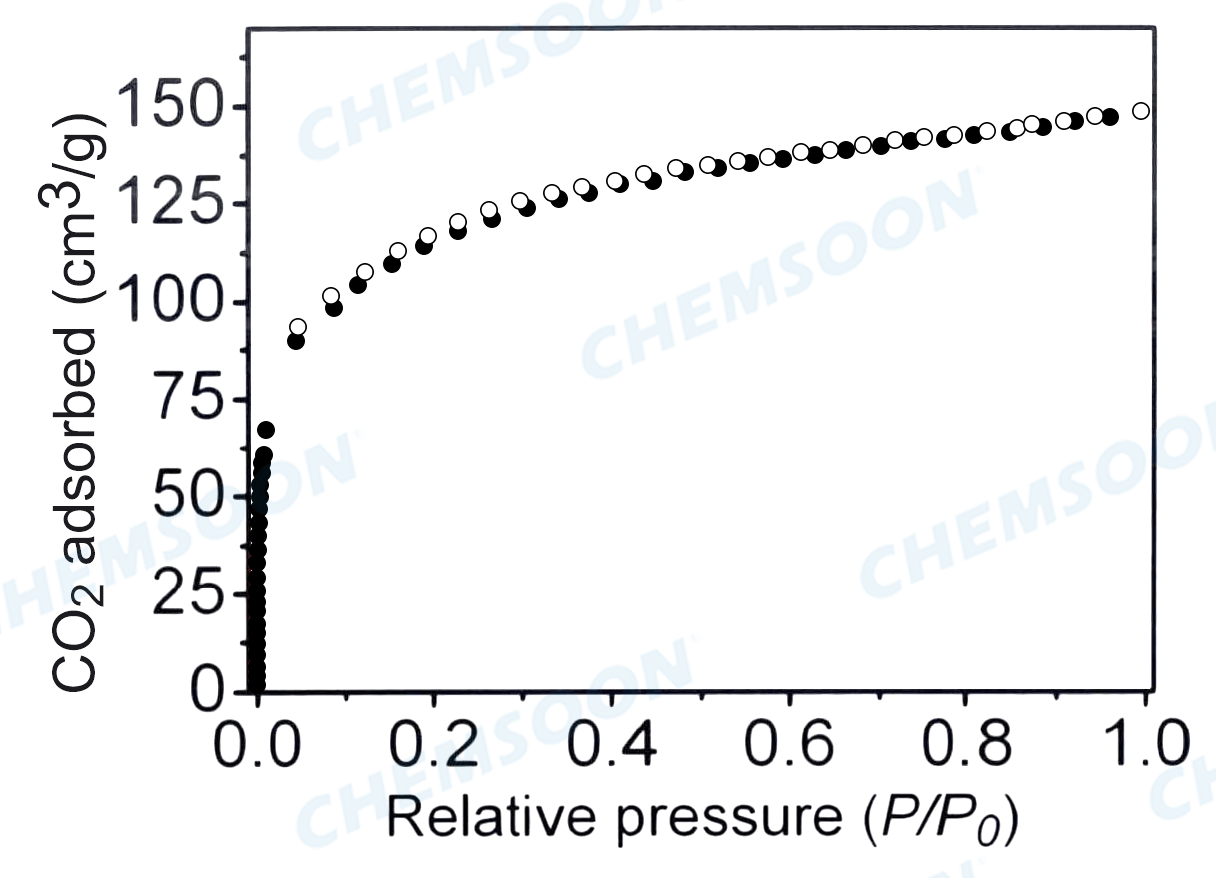

| Surface Area | BET 500 m2/g by CO2 sorption | ||||

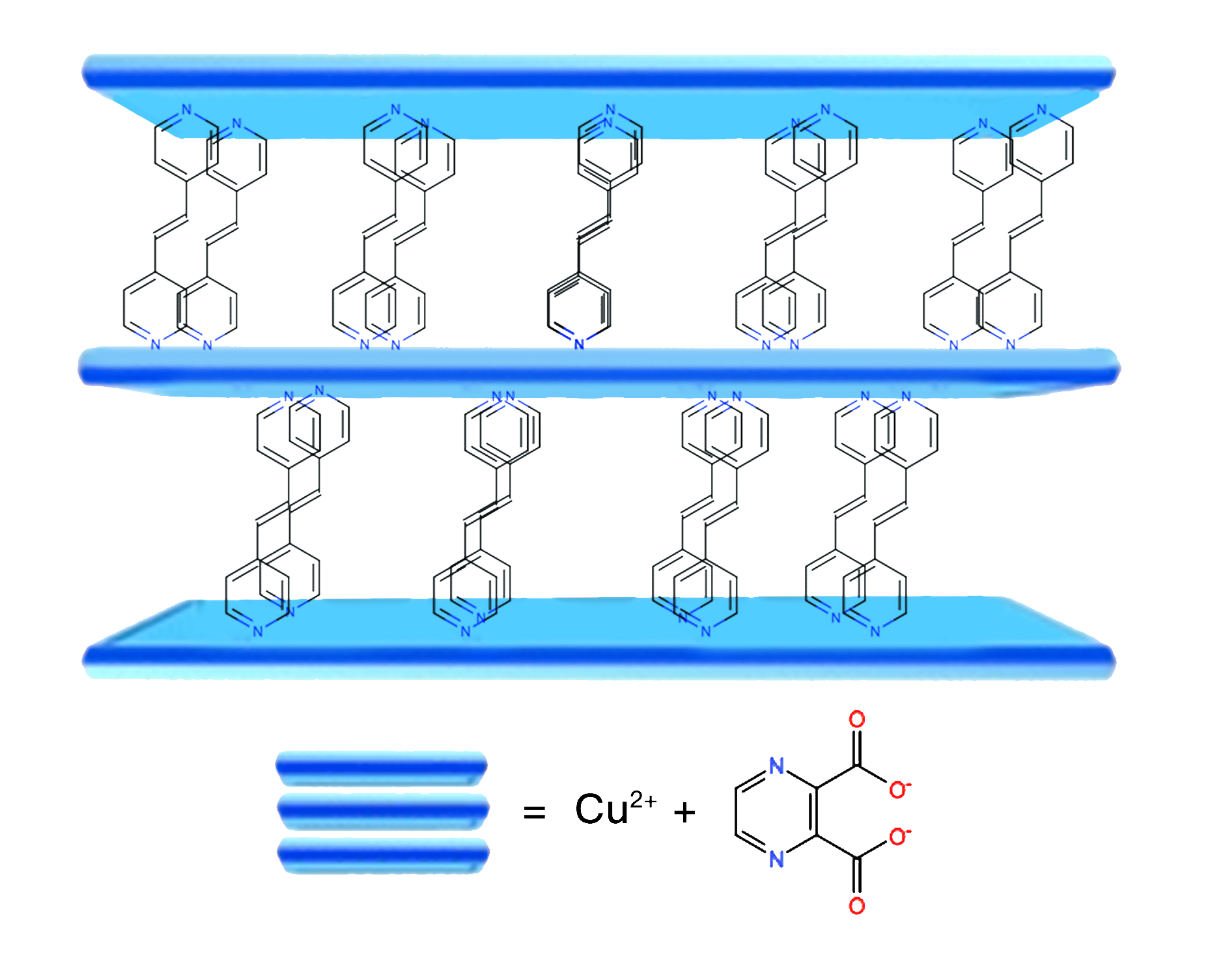

| Analog Structure |   |
||||
Product Property

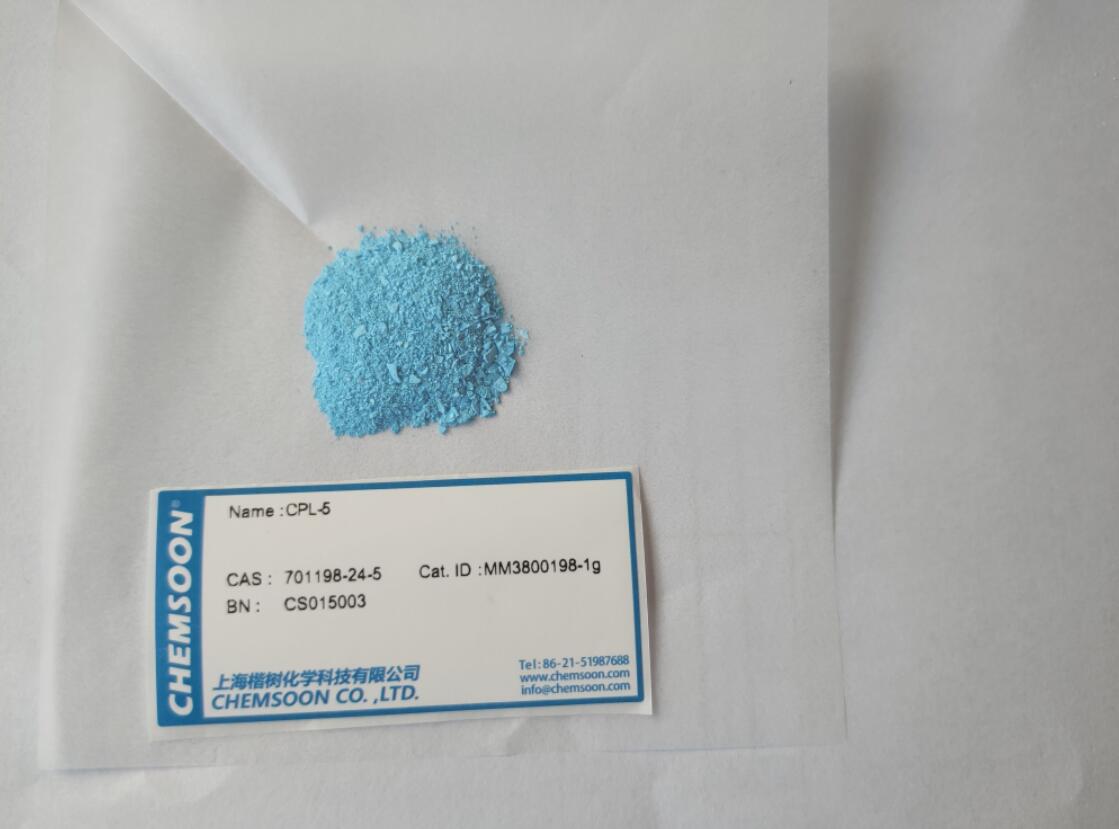

| Appearance | Blue Powder |  |
||
| Particle Size | 500nm | |||
Stability
1) CPL-5 is stable in air for weeks
2) Thermal decomposition temperature around 200 ° C
2) Thermal decomposition temperature around 200 ° C
Preservation
1) Keep sealed in dry and cool condition
2) It is recommended to activate for 3 hours at 120 degree in vacuum
Other Features
Fluorescence:NA
Applications
1) Gas (e.g. carbon dioxide, C2H2/C2H4) sorption and separation
2) vertical pore tunnel for transportion of ions
2) vertical pore tunnel for transportion of ions

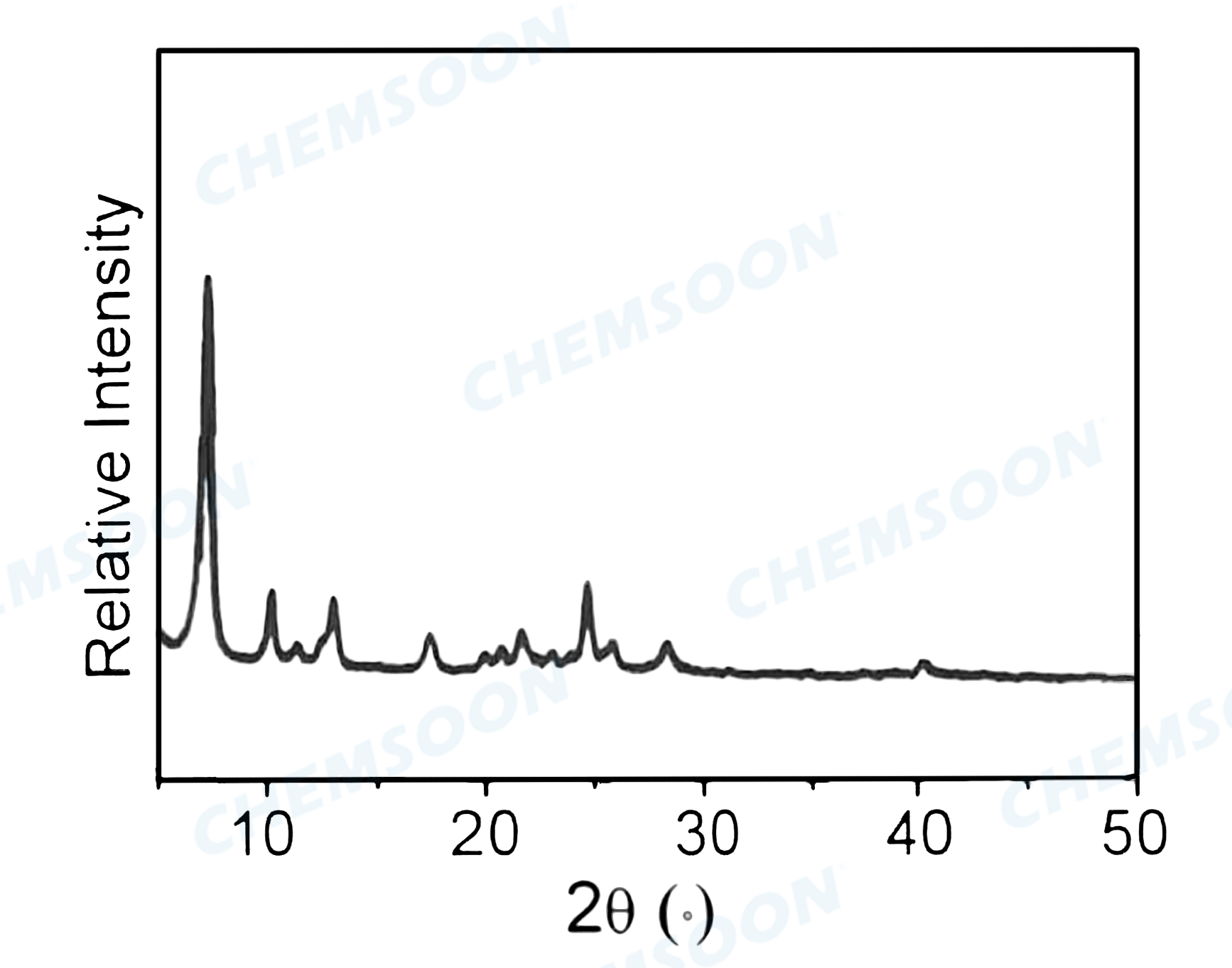

Characterizations
References
1) O. J. García-Ricard, J. C. Silva-Martíneza, A. J. Hernández-Maldonado, Dalton Trans., 2012,41, 8922-8930
2) H. Sakamoto, R. Matsudab, S. Kitagawa, Dalton Trans., 2012, 41, 3956–3961
