Product: SU-102
Synonyms: zirconium–ellagate framework
CAS：NA
Basic Information
| Formula | [(CH₃)₂NH₂]₂[Zr(HL)₂] (H₄L = ellagic acid) | Unit MW. | 905.12 | ||
| Coordination Metal | Zr(IV) | Linkers | Ellagic acid | ||
| Pore Size | 11.5 Å, 12 Å | Pore volume | DMA-SU-102: 0.30 cm³/g | ||
| Surface Area | DMA-SU-102: 605 m²/g; Na-exchanged: 601 m²/g | ||||
| Analog Structure | Rhombohedral, R-3c space group, 1D honeycomb channels | ||||
Product Property
| Appearance | Yellow crystalline solid | |||
| Particle Size | Average length: 0.98±0.66 μm, width: 0.19±0.06 μm | |||
Stability
1) Stable in aqueous solution at pH 3–12 and in PBS for over 14 days
2) Thermally stable up to 300 °C
3) Excellent cycling stability with minimal capacity loss over 500 water adsorption–desorption cycles
2) Thermally stable up to 300 °C
3) Excellent cycling stability with minimal capacity loss over 500 water adsorption–desorption cycles
Preservation
1) Keep in dry and cool condition
2) Activate at 80 °C under vacuum for 24 h or 150 °C under vacuum for 3 h before use
Other Features
Anionic framework; reversible cation exchange (Li⁺, Na⁺, K⁺, Mg²⁺, TMA⁺); visible-light responsive (band gap 2.73 eV); adsorbs SO₂ and CO₂; high-capacity water uptake at 4.3–11.1% RH with negligible hysteresis; regenerable with NaCl solution
Applications
1) Efficiently adsorbs cationic pharmaceutical pollutants from wastewater
2) Photocatalytic degradation of antibiotics (sulfamethazine) under visible light
3) Selective adsorption of CO₂, SO₂ for gas separation
4) Atmospheric water harvesting, desiccation and adsorption heat pumps

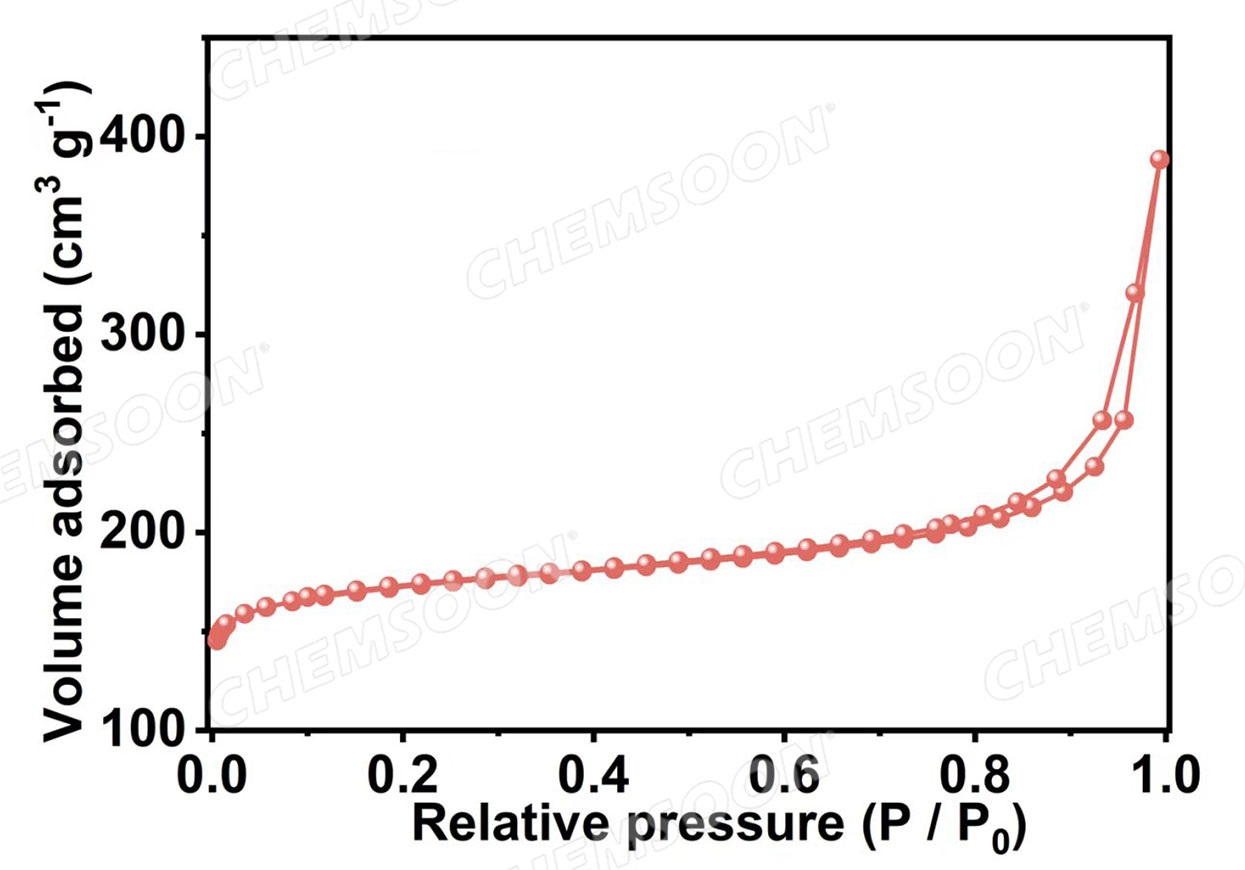

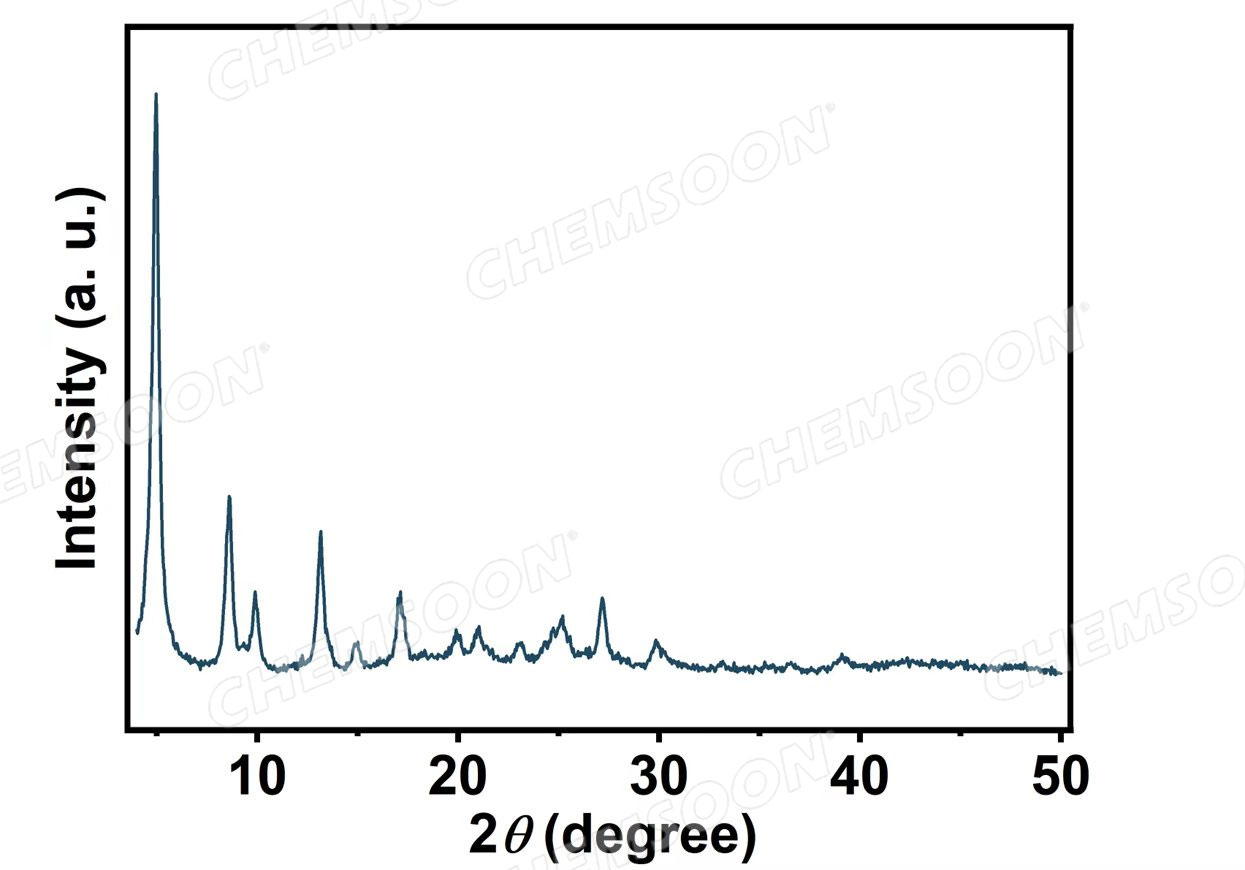

Characterizations
References
1) Erik Svensson Grape, Antonio J. Chacón-García, Sara Rojas, Yolanda Pérez, Aleksander Jaworski, Mathias Nero, Michelle Åhlén, Eva Martínez-Ahumada, Athina E. Galetsa Feindt, Mathieu Pepillo, Mayumi Narongin-Fujikawa, Ilich A. Ibarra, Ocean Cheung, Christian Baresel, Tom Willhammar, Patricia Horcajada, A. Ken Inge; Nature Water, 2023, 1, 433-442, DOI: 10.1038/s44221-023-00070-z, Removal of pharmaceutical pollutants from effluent by a plant-based metal–organic framework
2) Julius Oppenheim, Zhentao Yang, Bhavish Dinakar, Mircea Dincă; Nature Communications, 2025, 16, 4297, DOI: 10.1038/s41467-025-59551-2, High-capacity water sorbent cycles without hysteresis under dry conditions
