Product: CPL-1
Synonyms: NA
CAS：220578-75-6
Basic Information

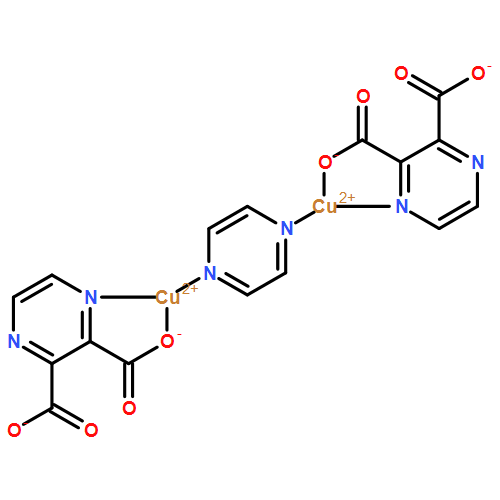

| Unit MF. | C16H8N6O8Cu2 | Unit MW. | 539.36212 | ||
| Coordination Metal | Cu | Linkers |
Pyrazine（CAS：290-37-9）Pyrazine-2,3-dicarboxylic acid（CAS：89-01-0） |
||
| Pore Size | 0.6nm*0.8nm | Pore volume | |||
| Surface Area | N2 BET surface area 200-400 m2/g | ||||

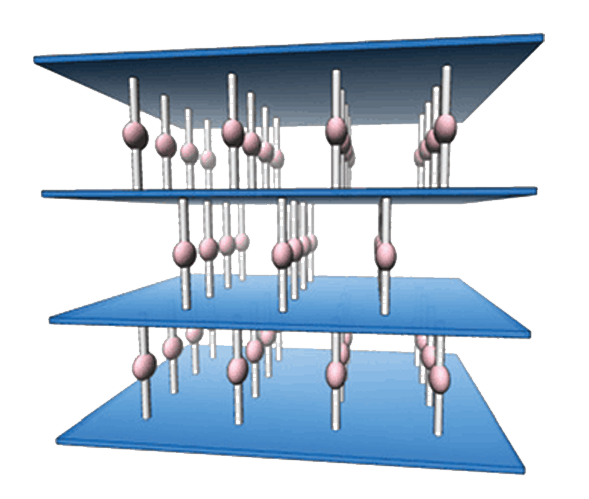

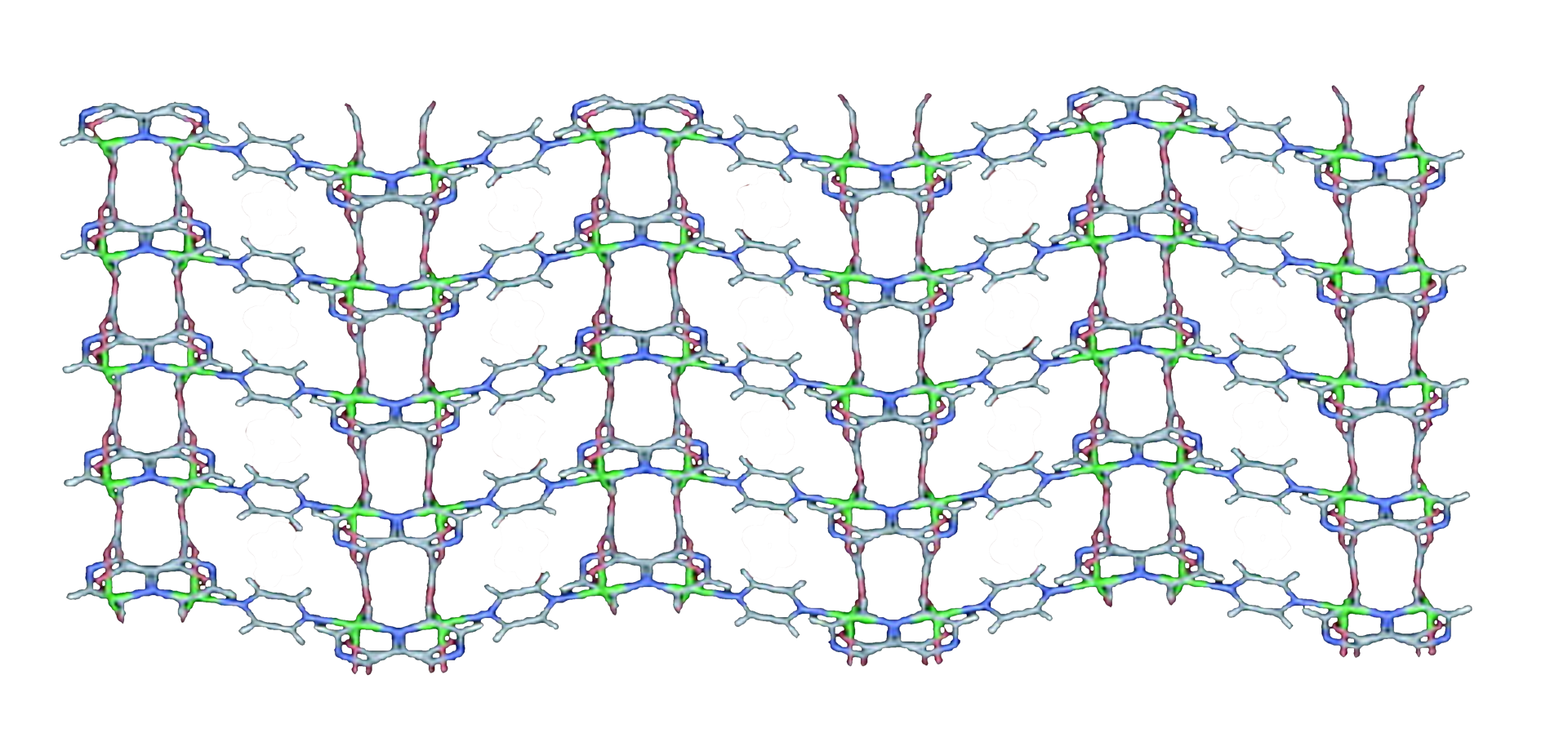

| Analog Structure |    |
||||
Product Property

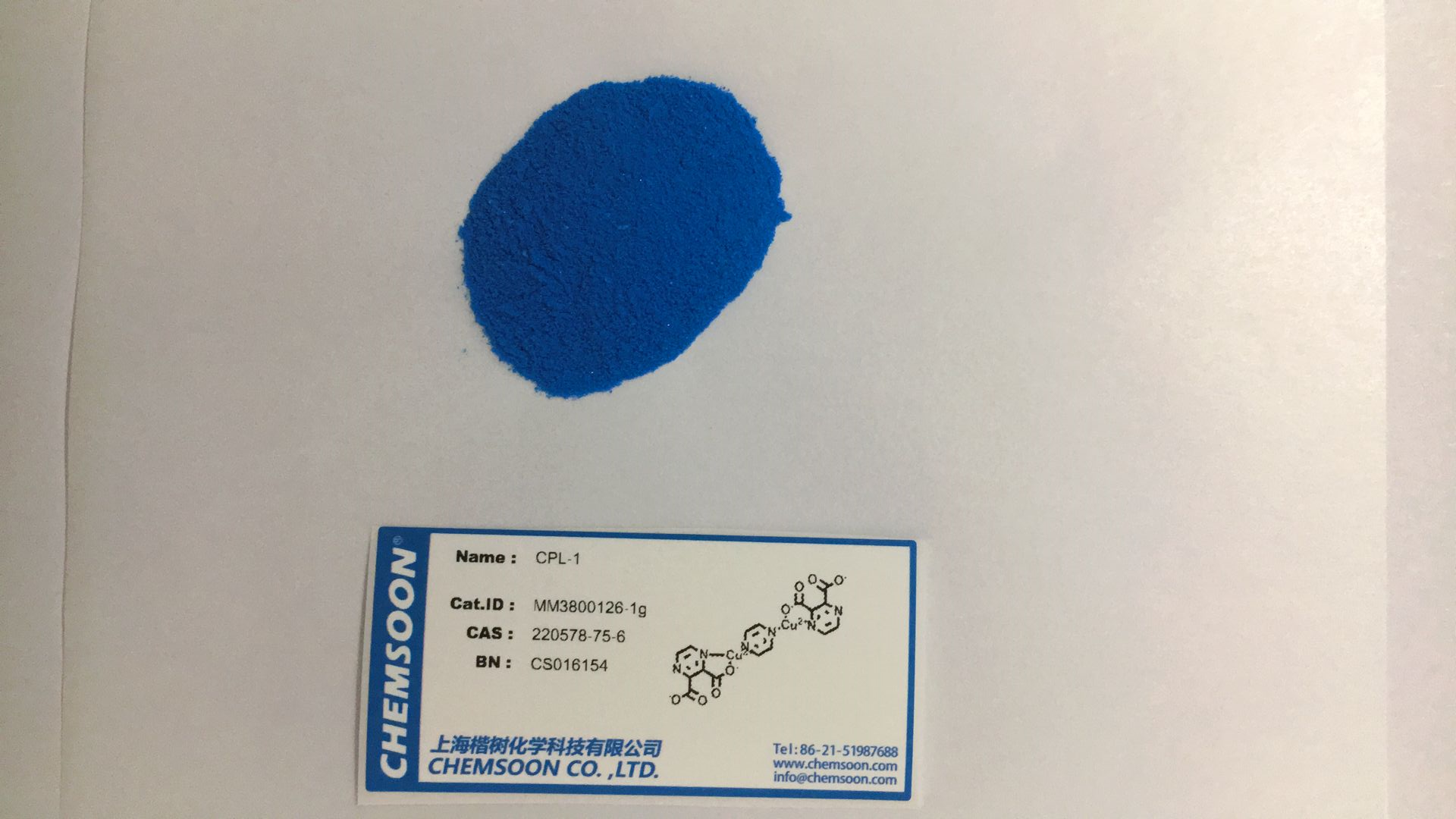

| Appearance | Blue Powder |  |
||

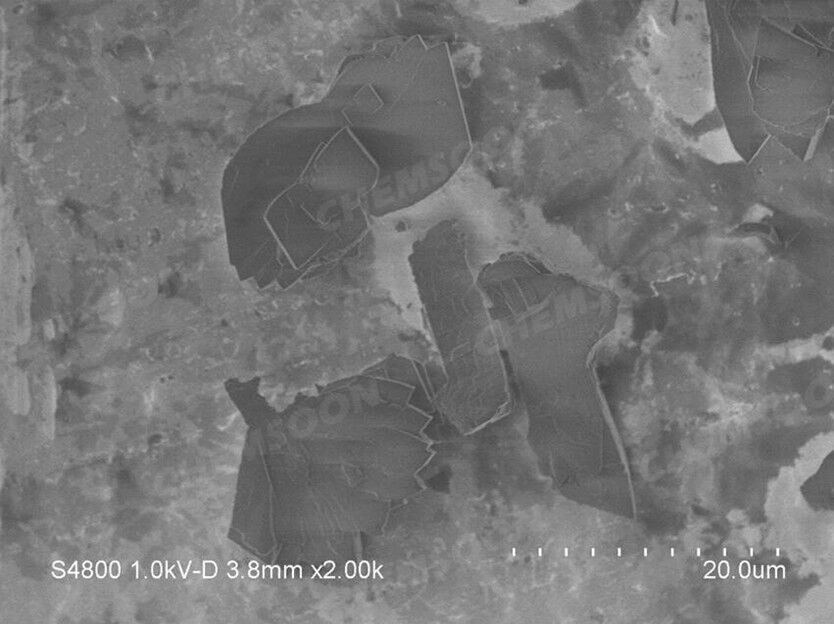

| Particle Size | 5-10um irregular rod or bulk particles | |||
Stability
1) CPL-1 is stable in air and aqueous conditions for weeks
2) Thermal decomposition temperature around 200 ° C
2) Thermal decomposition temperature around 200 ° C
Preservation
1) Keep sealed in dry and cool condition
2) It is recommended to activate for 3 hours at 100 degree in vacuum
Other Features
Fluorescence:NA
Applications

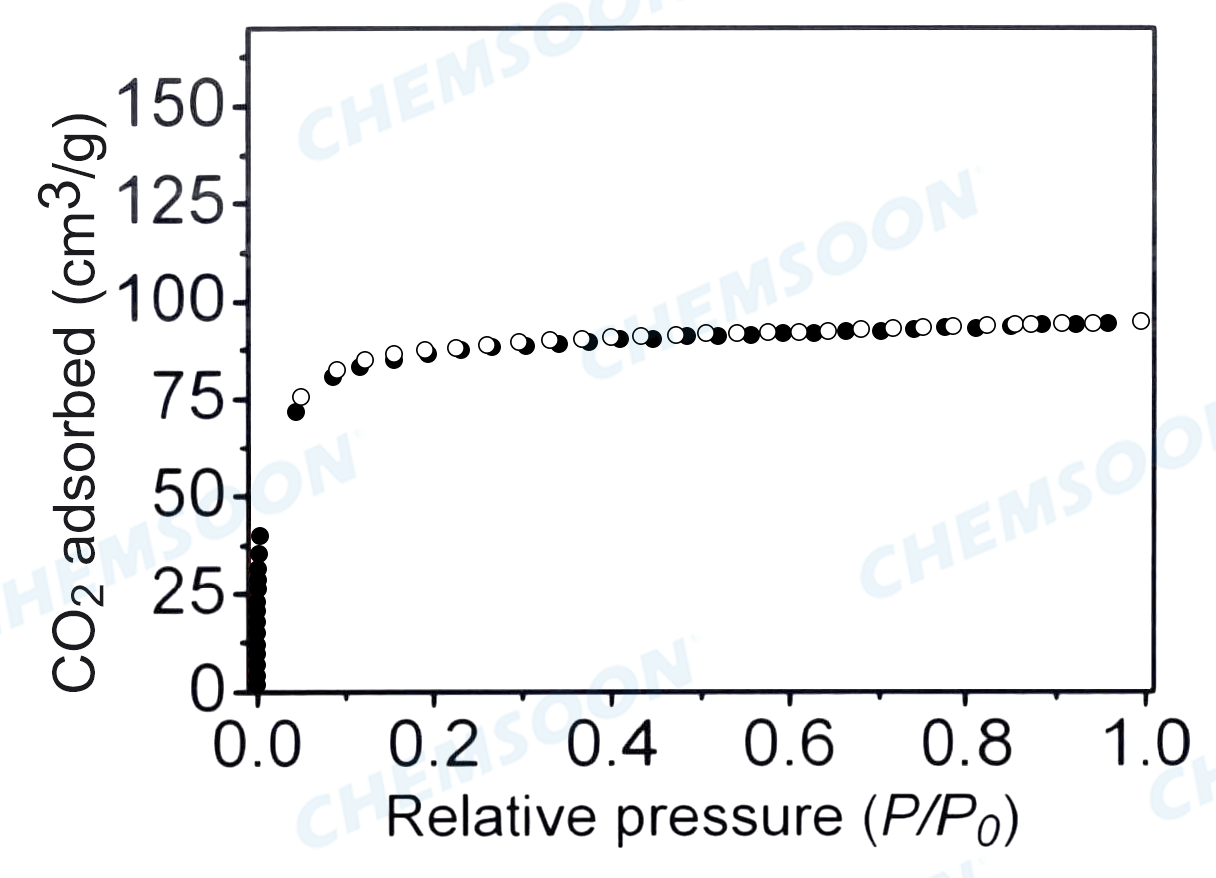

1) Gas (e.g. carbon dioxide, C2H2/C2H4) sorption and separation
2) vertical pore tunnel for transportion of ions
2) vertical pore tunnel for transportion of ions
Characterizations
References
1) Kitaura, Ryo; Kitagawa, Susumu; Kubota, Yoshiki; Kobayashi, Tatsuo C.; Kindo, Koichi; Mita, Yoshimi; Matsuo, Akira; Kobayashi, Michihiro; Chang, Ho-Chol; Ozawa, Tadashi C.; Suzuki, Megumi; Sakata, Makoto; Takata, Masaki; Science 2002, 298(5602), 2358-2361, DOI: 10.1126/science.1078481 ; Formation of a One-Dimensional Array of Oxygen in a Microporous Metal-Organic Solid
2) Sakamoto, Hirotoshi; Matsuda, Ryotaro; Kitagawa, Susumu; Dal. Trans., 2012, 41, 3956-396, DOI: 10.1039/c2dt12012g ; Systematic mechanochemical preparation of a series of coordination pillared layer frameworks
3) Chen, Yongwei; Qiao, Zhiwei; Lv, Daofei; Duan, Chongxiong; Sun, Xuejiao; Wu, Houxiao; Shi, Renfeng; Xia, Qibin; Li, Zhong; Chem. Eng. J. 2017, 328, 360-367, DOI: 10.1016/j.cej.2017.07.044 ; Efficient adsorptive separation of C3H6 over C3H8 on flexible and thermoresponsive CPL-1
