Product：nano-sized TpPa-1
Synonyms：1,3,5-Benzenetricarboxaldehyde, 2,4,6-trihydroxy-, polymer with 1,4-benzenediamine
CAS：1414350-37-0
Synonyms：1,3,5-Benzenetricarboxaldehyde, 2,4,6-trihydroxy-, polymer with 1,4-benzenediamine
CAS：1414350-37-0
Basic Information
| Unit MF. | C9H6O6.C6H8N2 | Unit MW. | 318.28146 | ||
| Linkers |
1) 2,4,6-trihydroxy-1,3,5-benzenetricarbaldehyde (CAS:34374-88-4); 2) 1,4-benzenediamine (CAS:106-50-3) |
||||
| Aperture | 1.8nm | Pore volume | 0.087 cm3/g | ||
| Surface Area | BET Specific surface 400-600 m2/g | ||||
| Analog Structure |    |
||||
Product Property

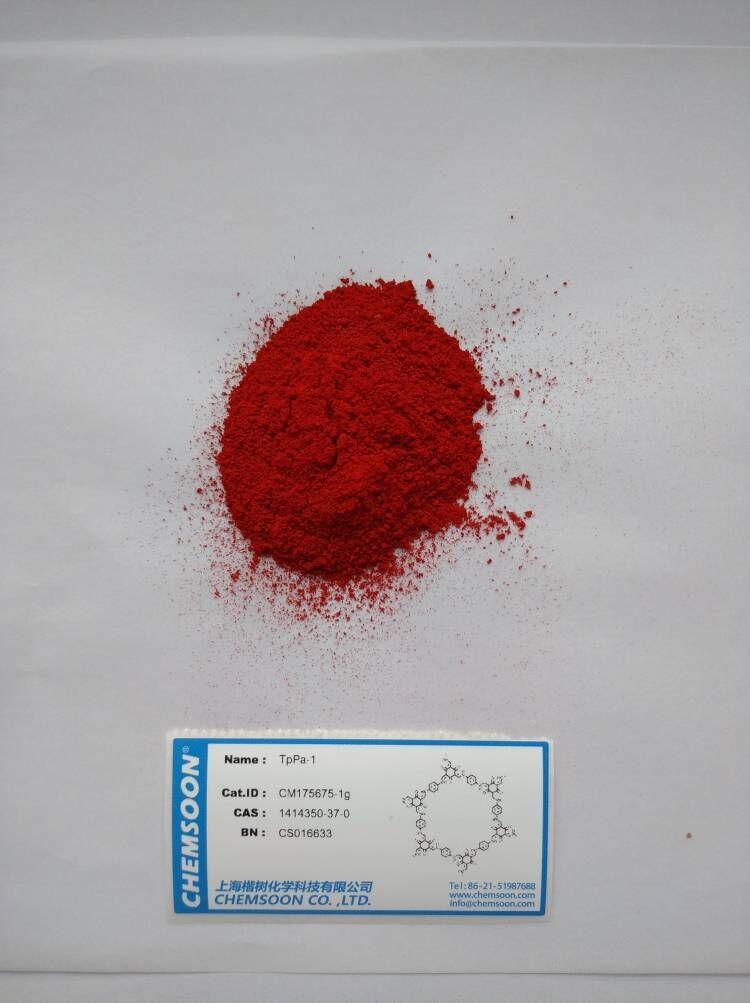

| Appearance |
Red or dark orange solid |
 |
||
| Particle Size | ~200nm | |||
Stability
1) Stable in aqueous solution and acidic solutions, unstable under strong alkaline conditions
Preservation
1) Dry and sealed under normal temperature or low temperature conditions
Other Features
Fluorescence: NA
Applications
1) For gas and pollutant adsorption
2) Rigid pores to load other catalysts
2) Rigid pores to load other catalysts
3) nanosized TpPa-1 with particle size around 200nm, is able to be applied in cell reseach for drug delivery and enzyme fixation

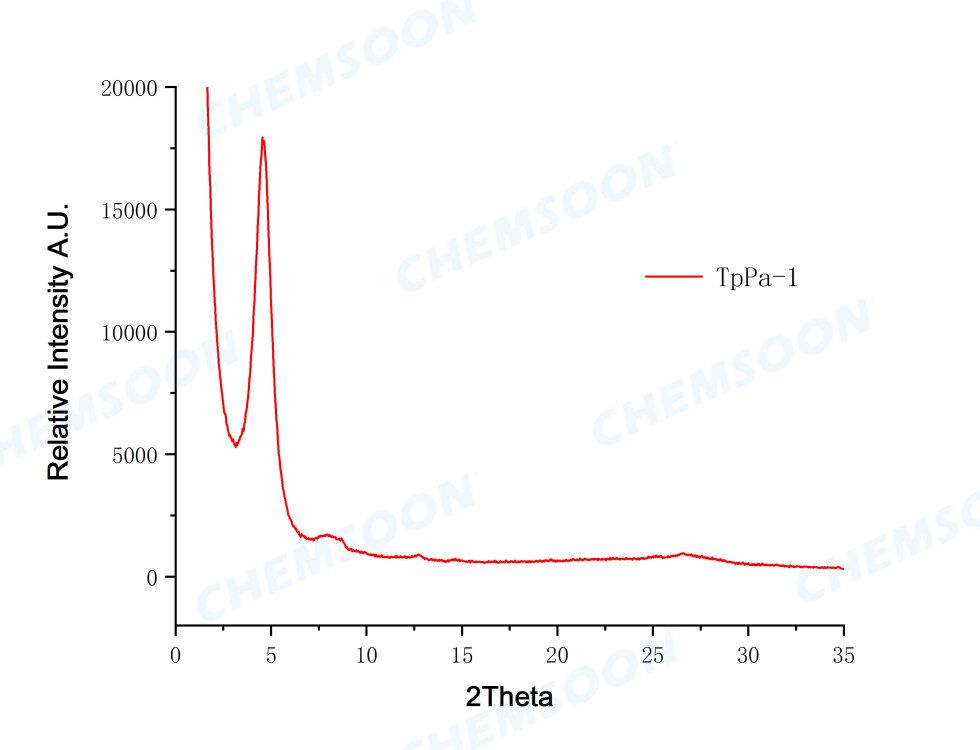

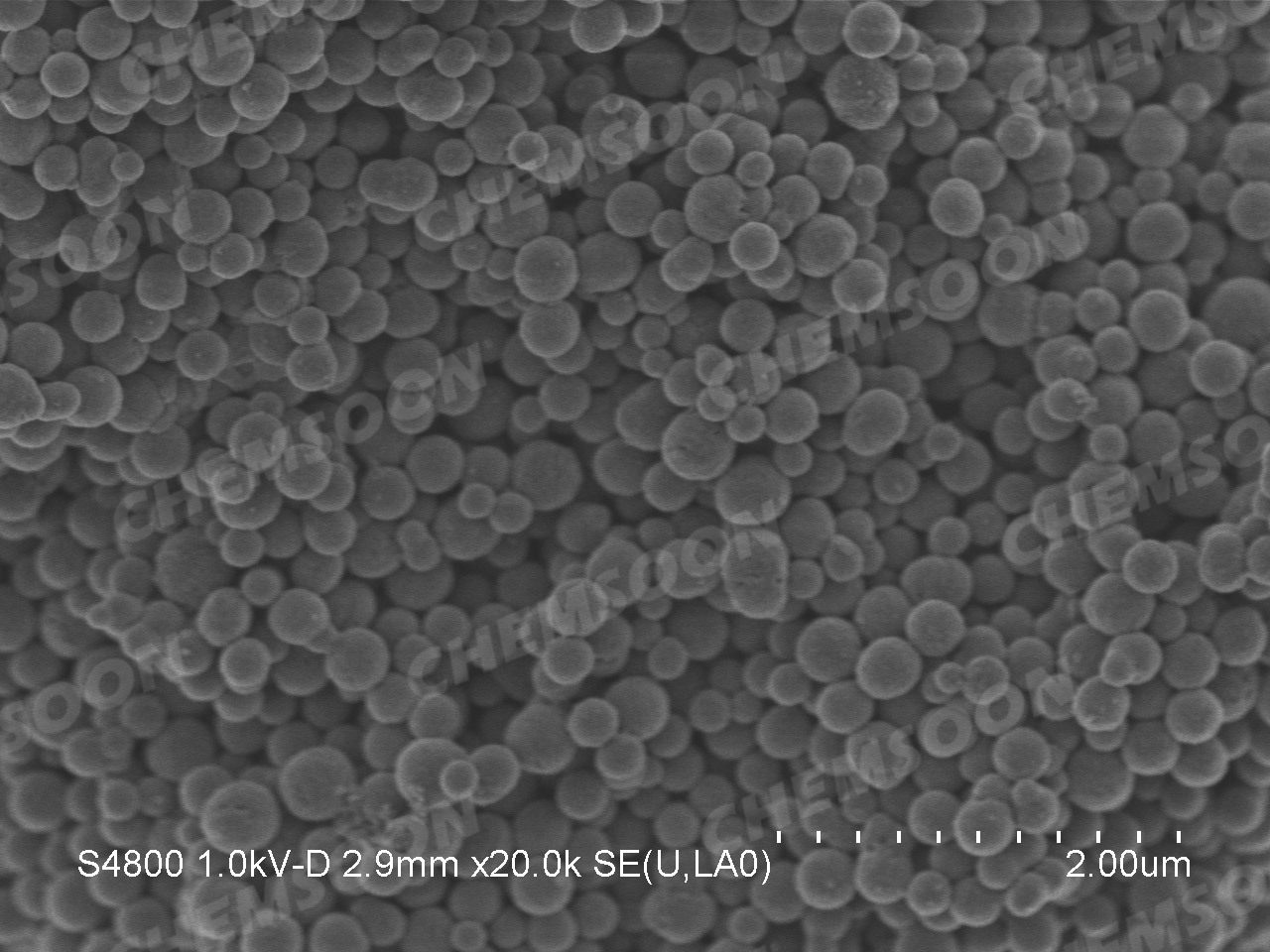

Characterizations
References
1) Jin Zhang, Cheng Cheng, Lijiang Guan, Hai-Long Jiang, and Shangbin Jin*; J. Am. Chem. Soc. 2023, 145, 40, 21974–21982, DOI: 10.1021/jacs.3c06764 ; Rapid Synthesis of Covalent Organic Frameworks with a Controlled Morphology: An Emulsion Polymerization Approach via the Phase Transfer Catalysis Mechanism
