Product: MIL-101(Cr)-SO3H
Synonyms: NA
CAS：1331961-41-1
Basic Information
| Unit MF. | C24HO25S3Cr3-2.H2O.H+ | Unit MW. | 700.2355 | ||
| Coordination Metal | Cr | Linkers | Terephthalic acid (CAS:100-21-0） | ||
| Aperture |
Aperture:1.2-1.6nm; Pore Size: 2.9-3.4nm |
Pore volume | ~2.0 cm3/g | ||
| Surface Area | BET Specific surface 1800-2000 m2/g, | ||||
| Analog Structure |   |
||||
Product Property

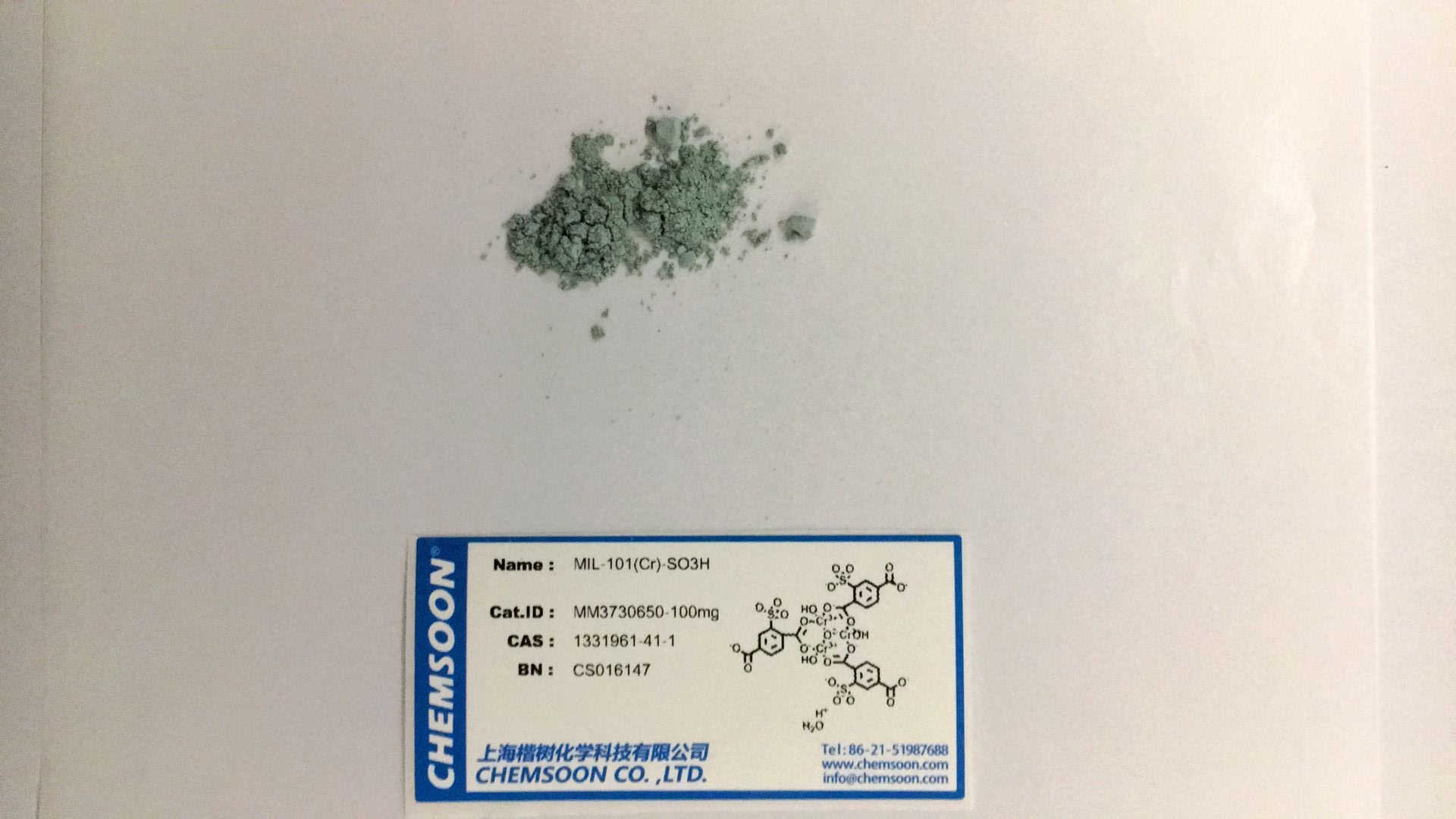

| Appearance | Grey Green Powder |  |
||
| Particle Size | 300-1um irregular | |||
Stability
1) MIL-101(Cr)-SO3H is stable in air and acqeous solutions (PH 1-12)
2）Thermal stability, thermal decomposition temperature above 300 ° C
2）Thermal stability, thermal decomposition temperature above 300 ° C
Preservation
1) Keep sealed in dry and cool condition
2) It is recommended to activate for 3 hours at 150 degree in vacuum.
Other Features
Fluorescence:NA
Applications
1) Gas (such as carbon dioxide) and pollutant adsorption
2) The -SO3H group could be further modified; it could be used as ion-probe or composed in membrane materials

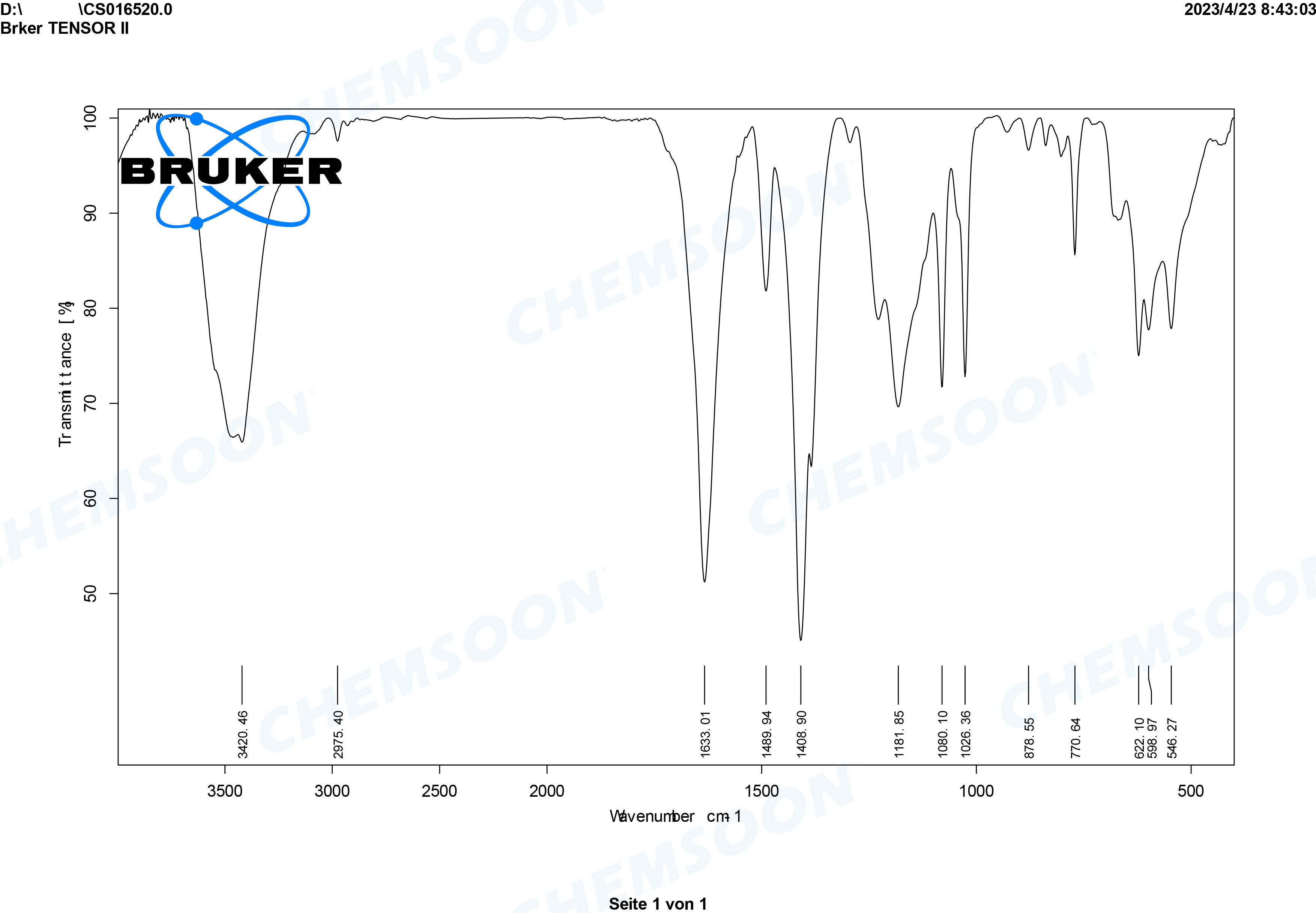

Characterizations
References
1) G. Akiyama, R. Matsuda, H. Sato, M. Takata, S. Kitagawa, Adv. Mater. 2011, 23, 3294–3297, DOI: 10.1002/adma.201101356 ; Cellulose Hydrolysis by a New Porous Coordination Polymer Decorated with Sulfonic Acid Functional Groups
