Summary:
The authors from Ludwig-Maximilians-University Munich developed oriented HKUST-1 (Cu₃(BTC)₂) thin films on gold substrates whose crystal orientation ([100] vs [111]) can be tuned by self-assembled monolayers (COOH-, OH- or CH₃-terminated), achieving the first molecular-level control of MOF film orientation for potential gas-separation membranes and sensors.

Background:
1. Previous researchers have mainly produced bulk MOFs with excellent porosity and catalytic properties, yet thin-film growth with controlled crystal orientation—required for directional transport—remains a major challenge.
2. The authors propose using functionalized self-assembled monolayers (SAMs) as nucleation templates and obtain highly oriented HKUST-1 films whose pore channels are aligned perpendicular or parallel to the substrate on demand.

Research Content:
1. Synthesis:
   Gold slides were functionalized with 11-mercaptoundecanoic acid (-COOH), 11-mercapto-1-undecanol (-OH) or 1-mercaptoundecane (-CH₃) SAMs, then immersed in a pre-aged HKUST-1 mother liquor at room temperature for 8–210 h to grow thin films.
2. Characterizations:
   1) XRD shows exclusive (200)/(400) reflections ([100] orientation) on COOH-SAM, and dominant (222) reflection ([111] orientation) on OH-SAM; CH₃-SAM yields mixed orientations.
   2) SEM reveals crystal evolution from 150–200 nm rounded octahedra to ~1 μm well-shaped crystals, forming ~600 nm continuous intergrown monolayers after 112 h.
   3) RAIR spectroscopy confirms intact SAMs after crystallization.
3. Application:
   The oriented films act as model platforms for directional gas diffusion and could be directly integrated into membrane or sensor devices (demonstrated conceptually).
4. Mechanism:

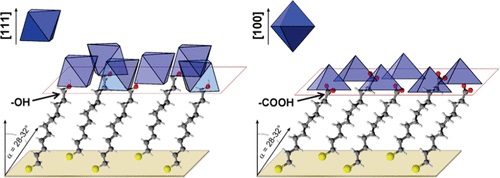

   The exposed axial Cu²⁺ sites in HKUST-1 “paddle-wheel” units selectively coordinate to SAM termini—chelating COOH mimics the BTC linker to promote [100] growth, while OH replaces axial water to favor [111] attachment; CH₃ offers only weak van-der-Waals interactions, leading to random orientation.

Outlook:
This work establishes a versatile surface-chemistry route to orient MOF crystals without external fields, opening pathways to anisotropic membranes, sensors and catalytic coatings.

Oriented Growth of the Metal–Organic Framework Cu₃(BTC)₂(H₂O)₃·xH₂O Tunable with Functionalized Self-Assembled Monolayers
Authors: Enrica Biemmi, Camilla Scherb, Thomas Bein
DOI: 10.1021/ja0701208
Link: https://pubs.acs.org/doi/10.1021/ja0701208
